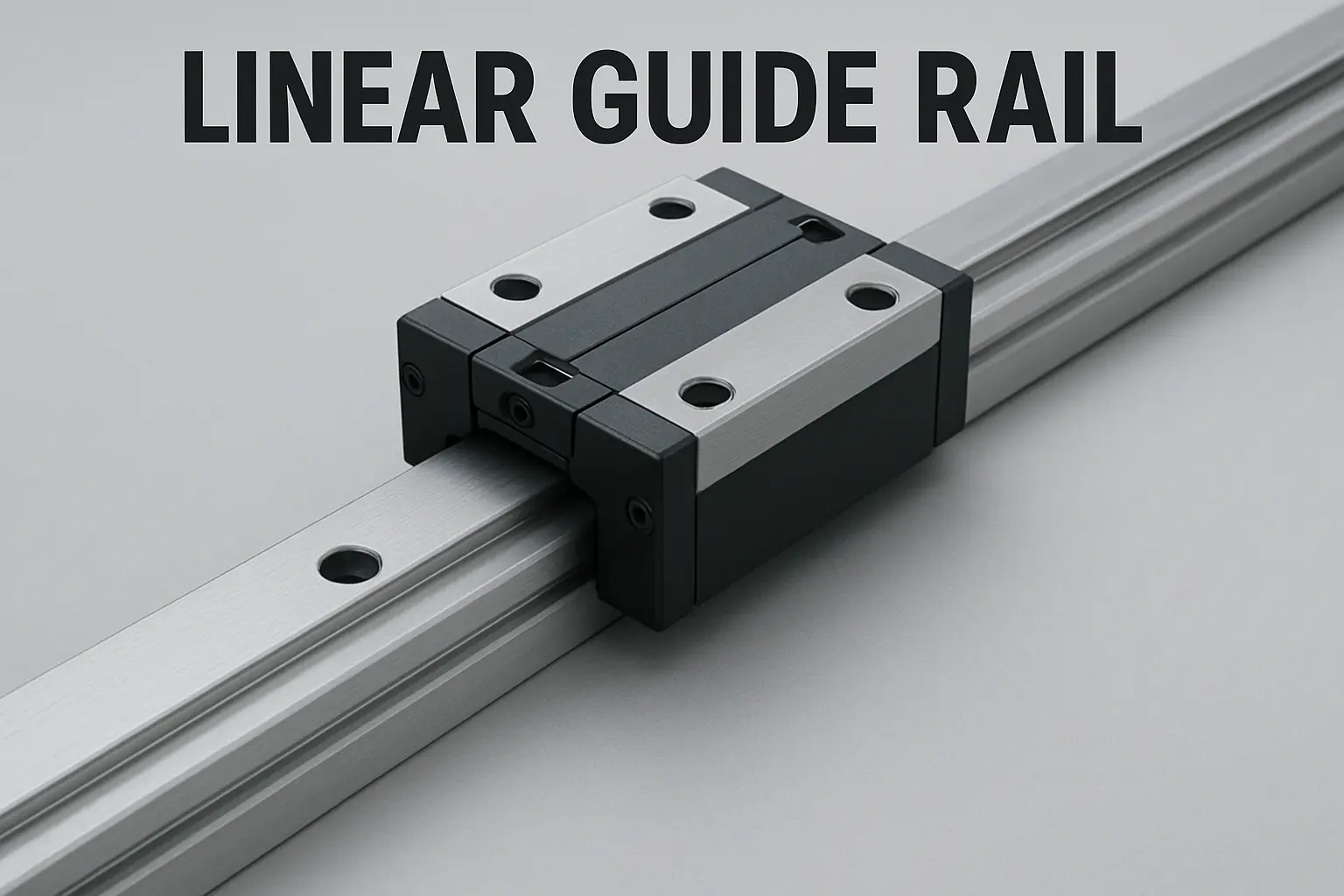

Introduction to Linear Guide Rail
Linear guide rails play a crucial role in modern motion systems, ensuring that machinery and components move smoothly, accurately, and efficiently. In the simplest terms, a linear guide rail is a mechanical component designed to support and guide motion in a straight line. Instead of relying on traditional sliding mechanisms that create friction and wear, these rails use rolling elements such as balls or rollers that glide with minimal resistance. This makes them essential in industries where precision, stability, and reliability are non-negotiable — like robotics, CNC machines, medical devices, and automation systems.
The concept behind linear guide rails may sound straightforward, but their engineering is quite sophisticated. Each component—from the hardened rail itself to the tiny bearings that move within the carriage—is carefully designed to maintain alignment even under heavy loads or high speeds. The result? Consistent linear motion with minimal vibration, reduced energy consumption, and outstanding durability.
Another reason for their popularity is versatility. Linear guide rails come in a wide range of configurations, allowing engineers to select the perfect design for specific needs. Whether it’s a high-load industrial machine or a delicate robotic arm, the right linear guide ensures performance and longevity.
Over time, the evolution of manufacturing technologies has made these systems more compact and efficient. Innovations in materials and lubrication have further improved their lifespan. So, while they might look simple from the outside, linear guide rails are the backbone of countless precision systems around the world—quietly enabling smooth motion where it matters most.
Components of a Linear Guide Rail
A linear guide rail might look like a simple track-and-slider system at first glance, but its design is far more intricate and deliberate. Every part of it has a purpose — working together to ensure smooth, precise, and reliable linear motion. Understanding these components helps in selecting, maintaining, and optimizing a system for maximum performance.
At its core, a linear guide rail consists of three main parts: the rail, the block (or carriage), and the rolling elements — usually balls or rollers. The rail is a long, hardened metal track, often made of stainless steel or high-carbon steel, that provides the guiding surface for movement. Its surface must be perfectly straight and polished, since even a slight imperfection can cause vibration or misalignment during operation.
Then comes the block, also known as the carriage, which moves along the rail. This part houses the rolling elements and connects directly to the machine or component that needs linear movement. The block is designed to distribute loads evenly and reduce friction. In high-precision applications, even the tiniest deviation in the block’s position can affect the entire system’s performance — which is why manufacturers design them with exceptional accuracy and often preload them to eliminate play or looseness.
Lastly, the rolling elements — either balls or rollers — are what make linear guide rails truly efficient. These tiny components roll between the block and rail surfaces, minimizing friction and allowing for smooth, repeatable movement. Ball-type systems are more common due to their balance between cost and performance, while roller types offer greater rigidity and load-bearing capacity.
Together, these components form a cohesive system capable of handling heavy loads, maintaining precision, and operating silently for long periods. Without these carefully engineered parts working in harmony, modern precision machinery simply couldn’t exist.
Rail
The rail is the foundation of every linear guide system — it’s the path along which precision movement takes place. Usually crafted from high-quality, hardened steel, the rail is engineered to maintain straightness, rigidity, and durability even under continuous heavy loads. Its design might appear simple, but every millimeter of it is meticulously manufactured for accuracy. In many ways, the rail determines the overall performance and lifespan of the linear motion system.
A typical linear guide rail features a rectangular cross-section with precision-ground surfaces and grooves that accommodate the rolling elements inside the carriage. These grooves — also called raceways — are designed to hold the balls or rollers in a fixed track, allowing them to glide effortlessly as the block moves. Depending on the application, rails can come in different profiles, such as square type for high rigidity or round type for lighter, more flexible setups.
The material used in the rail plays a big role in its effectiveness. Most rails are made from carbon steel or stainless steel, both of which offer excellent resistance to wear and deformation. Stainless steel rails, in particular, are ideal for environments where corrosion or moisture could be an issue — like in medical equipment or food processing machinery. Additionally, the rail surface often undergoes heat treatment and precision grinding, ensuring not just strength but also a mirror-like smoothness that reduces friction and vibration.
Proper installation of the rail is equally vital. Even a minor misalignment can compromise accuracy or cause premature wear. For this reason, rails are often mounted on machined surfaces and secured with precision bolts. When maintained well — cleaned regularly and lubricated correctly — a quality rail can last for years, consistently delivering smooth, accurate, and stable motion without fail.
Block or Carriage
The block, also known as the carriage, is the moving heart of a linear guide rail system. It slides along the rail, carrying loads with remarkable precision and minimal resistance. This component is responsible for ensuring that motion remains stable, smooth, and repeatable — no matter how demanding the application. The block connects directly to the moving part of the machine, such as a robotic arm, cutting tool, or platform, making its performance crucial to the entire system.
A typical block is built from high-strength steel or aluminum alloy, providing a balance between rigidity and lightweight performance. Inside the block are raceways that contain the rolling elements — tiny steel balls or cylindrical rollers — that move between the rail and the carriage. These elements are arranged in a recirculating pattern, meaning they continuously cycle through the block as it moves, ensuring consistent contact and even wear distribution.
To enhance precision, manufacturers often preload the block — applying slight internal pressure between the balls or rollers and the raceway. This eliminates any play or looseness, known as backlash, ensuring that even minute movements are accurately transferred. In high-speed or heavy-duty systems, preloading also improves vibration damping and stability.
Many blocks also incorporate lubrication systems, such as oil grooves or grease fittings, to keep the rolling elements well-lubricated. Proper lubrication reduces friction and prevents metal-to-metal contact, significantly extending the system’s lifespan. Some advanced models even come with self-lubricating options, ideal for maintenance-free operations.
Lastly, the block’s design may vary depending on the load direction or mounting needs — with flanged, compact, and long blocks among the most common types. Regardless of design, the block’s primary role remains the same: to ensure a precise, controlled, and smooth linear motion that forms the backbone of modern automation and machinery.
Balls or Rollers
The balls or rollers inside a linear guide rail system are the unsung heroes that make smooth, precise motion possible. Though small in size, these rolling elements carry tremendous responsibility — literally. They support the load of the entire system while allowing the carriage to move with minimal friction. Without them, linear motion would revert to sliding contact, which generates heat, wear, and inefficiency.
In most modern designs, two main types of rolling elements are used: balls and rollers. Ball-type linear guides use small spherical bearings that roll between the rail and the block in a recirculating pattern. This design is highly efficient because balls offer point contact, reducing friction dramatically and enabling fast, smooth movement. Ball guides are widely used in applications where precision and speed are prioritized — such as CNC machines, 3D printers, and robotic systems.
On the other hand, roller-type linear guides replace the balls with cylindrical rollers. These rollers provide line contact rather than point contact, which increases the surface area and allows for higher load capacity and rigidity. Roller guides are ideal for heavy-duty applications or systems that demand minimal deflection, like industrial automation equipment or heavy manufacturing tools.
Both types have their unique benefits. Ball systems are known for their lightness, low noise, and cost-effectiveness, while roller systems excel in stability, stiffness, and longevity. However, proper maintenance is vital for both — especially lubrication. Without adequate lubrication, the rolling elements can wear out prematurely, leading to rough movement or even damage to the rail and block surfaces.
Some advanced designs incorporate sealed rolling circuits or self-lubricating technologies, ensuring consistent performance with little maintenance. Ultimately, whether a system uses balls or rollers depends on its purpose — but in either case, these small components are the key to achieving smooth, precise, and efficient linear motion.
Types of Linear Guide Rails
Linear guide rails come in several types, each designed to meet specific motion, load, and precision requirements. While they all share the same fundamental purpose — enabling smooth, linear motion — their internal construction and load-handling characteristics can vary significantly. Understanding these types helps engineers and users choose the right one for their particular application, whether it’s high-speed automation or heavy industrial use.
The most common types are ball-type, roller-type, and cross roller linear guide rails. The ball-type is the most widely used, offering a balance between cost, speed, and accuracy. It relies on spherical balls that recirculate inside the block, rolling along the rail’s grooves. This design minimizes friction and allows for extremely smooth, quiet motion. These guides are ideal for applications like 3D printing, precision measuring devices, and CNC machining where smoothness and accuracy matter most.
The roller-type linear guide rail, in contrast, is built for strength. It uses cylindrical rollers instead of balls, increasing contact surface area and thus improving rigidity and load capacity. Because of this, roller guides are often found in heavy-duty equipment such as industrial robots, machine tools, and packaging systems that must handle large forces with minimal deflection.
Then there’s the cross roller guide rail, which uses crossed cylindrical rollers that alternate orientation by 90 degrees. This unique design provides extremely high precision and can handle both radial and moment loads. Cross roller systems are often used in optical instruments, semiconductor equipment, and precision measuring devices where micrometer-level accuracy is required.
Each type has its advantages and trade-offs, and the right choice depends on the specific demands of the system. Whether the goal is smooth speed, rigidity, or ultra-precision, selecting the correct linear guide rail type ensures performance, stability, and a long operational lifespan.
Ball Type Linear Guide Rail
The ball type linear guide rail is perhaps the most common and versatile design used in modern motion systems. Its fundamental principle lies in the recirculating movement of small steel balls that roll between the rail and the block. This rolling action drastically reduces friction compared to traditional sliding mechanisms, ensuring smooth, precise, and efficient motion even under high speeds.
In a ball-type linear guide rail, the balls move along raceways — grooves precisely machined into both the rail and the block. As the carriage moves, the balls circulate continuously through the system, transferring load evenly and minimizing wear. Because of this design, ball-type guides can achieve impressive accuracy levels, often within microns, which makes them ideal for high-precision applications like CNC machines, robotics, semiconductor manufacturing, and 3D printers.
One of the major advantages of this type is its low friction coefficient. Since the balls roll instead of slide, very little energy is lost to heat, allowing for faster movement and greater efficiency. This smooth motion also translates into quieter operation, which is valuable in environments that demand minimal vibration or noise. Additionally, their compact size and standardized shapes make them easy to integrate into different machines.
However, ball-type linear guides aren’t without limitations. Because the balls make point contact with the raceways, their load-bearing capacity is lower than that of roller-type guides. They may also be more sensitive to impact or contamination from dust or debris, which can lead to pitting or uneven wear if not properly maintained.
Still, for most medium-duty applications where precision, speed, and smoothness are key, the ball-type linear guide rail remains a top choice. Its balance of performance, affordability, and ease of installation makes it a backbone of precision engineering across countless industries.
Roller Type Linear Guide Rail
The roller type linear guide rail is designed for strength, stability, and endurance — a perfect solution for applications that demand high rigidity and heavy load-bearing capacity. Unlike the ball-type variant, which uses spherical balls for rolling motion, this type employs cylindrical rollers. The main difference lies in the contact area: rollers provide line contact rather than point contact, which significantly increases the load capacity and stiffness of the system.
Because of this line contact, roller type linear guides can handle greater forces and moments without deformation. This makes them particularly useful in industrial environments where machines must operate under continuous heavy loads — such as machine tools, automated assembly lines, injection molding machines, and robotic systems. The enhanced rigidity also ensures minimal vibration, which is crucial for maintaining precision during high-speed or high-force operations.
Another benefit of roller guide rails is their longer service life. Since the load is distributed over a larger contact area, wear occurs more gradually compared to ball-type systems. They also exhibit better resistance to impact loads and misalignment. Many roller-type designs feature integrated seals and lubrication systems, which help protect the internal components from dust and contaminants while maintaining consistent lubrication — extending their operational reliability.
However, there are a few trade-offs. Roller type linear guides tend to be more expensive and heavier than ball types. They also generate slightly higher rolling resistance, which can affect speed in applications where rapid motion is critical. Despite this, their durability and load capacity make them indispensable for demanding applications where precision must be paired with power.
In short, the roller type linear guide rail stands out for its strength, rigidity, and longevity, offering an optimal choice for environments where heavy loads and stable performance are key.
Cross Roller Guide Rail
The cross roller guide rail represents the pinnacle of precision and rigidity in linear motion systems. Unlike traditional ball or roller types, this design arranges cylindrical rollers alternately at 90-degree angles — hence the name “cross roller.” This unique configuration allows the guide to support loads from multiple directions while maintaining exceptional accuracy and minimal friction. It’s a system built for ultra-smooth, stable, and repeatable motion, even under demanding conditions.
In a cross roller guide rail, each roller runs between two V-shaped raceways — one on the rail and one on the block. Because the rollers are positioned orthogonally (crossed at right angles), they distribute loads evenly in all directions: radial, axial, and moment. This gives the system an impressive stiffness-to-size ratio, allowing compact components to handle surprisingly high loads without deflection. The result is movement so precise that even microscopic deviations are minimized.
These qualities make cross roller guide rails ideal for precision machinery — such as optical instruments, medical imaging devices, semiconductor equipment, coordinate measuring machines (CMMs), and high-end automation tools. They are particularly valuable where positioning accuracy is measured in microns, and any vibration or play could compromise results.
Another advantage of cross roller systems is their exceptionally smooth motion. The alternating roller arrangement ensures continuous contact, reducing the “stick-slip” effect that sometimes occurs in ball-bearing systems. Many designs also incorporate integrated retainers to prevent roller displacement during assembly or vibration, enhancing long-term reliability.
However, their precision comes at a price. Cross roller guides are more delicate and require careful installation and maintenance. Contaminants like dust or metal shavings can cause damage if the system isn’t properly sealed. Despite these challenges, for applications where accuracy, rigidity, and ultra-smooth motion are paramount, cross roller guide rails remain an unrivaled choice.
Working Principle of Linear Guide Rails
The working principle of linear guide rails revolves around one core idea — enabling smooth, precise, and controlled movement along a straight line while minimizing friction. Unlike traditional sliding systems that rely on surface contact (which causes wear and heat), linear guide rails use rolling elements such as balls or rollers that glide between the rail and the block. This rolling motion allows for effortless movement, higher accuracy, and longer lifespan.
At the heart of the mechanism lies the recirculating system. Inside the carriage or block are tracks — known as raceways — where the rolling elements continuously circulate as the block moves along the rail. When the carriage travels in one direction, the rolling elements rotate forward along the load-bearing path. Once they reach the end, they loop back through a return channel inside the block and re-enter the cycle. This continuous recirculation ensures smooth, uninterrupted linear motion.
The design also ensures even load distribution. Because the rolling elements share the weight across multiple contact points, stress on individual components is reduced, preventing deformation and extending service life. The rail and block are precisely machined so that the contact between them is consistent, maintaining accuracy even under heavy or uneven loads.
Lubrication plays a vital role in this principle as well. A thin film of grease or oil separates the rolling elements from the raceway surfaces, reducing friction, preventing corrosion, and ensuring consistent performance. Many modern systems include integrated lubrication ports or self-lubricating mechanisms to minimize maintenance.
In essence, the linear guide rail functions like a precision highway — the rail provides the path, the rolling elements are the wheels, and the block is the vehicle that carries the load. Together, they achieve highly accurate, efficient, and stable motion — the cornerstone of today’s precision engineering and automation technologies.
Conclusion
Linear guide rails have become an essential component in today’s world of precision engineering and automation. Their ability to provide smooth, stable, and highly accurate motion makes them invaluable across a wide range of industries — from robotics and CNC machining to medical equipment and semiconductor manufacturing. By using rolling elements like balls or rollers, these systems drastically reduce friction, enhance load capacity, and ensure reliable performance over time.
One of the key reasons for their popularity is versatility. Whether a project requires compact designs, heavy-duty support, or ultra-precise positioning, there’s a linear guide rail type that fits perfectly. Ball-type guides offer speed and efficiency, roller-type systems deliver strength and rigidity, and cross-roller designs ensure unmatched precision. Together, they cover nearly every mechanical motion need imaginable.
Equally important is maintenance and proper selection. Choosing the right material, lubrication method, and installation setup can dramatically extend the system’s lifespan and accuracy. Even minor misalignments or neglected lubrication can affect performance, so attention to detail is crucial during setup and upkeep.
In short, linear guide rails form the invisible backbone of countless modern machines. They quietly ensure that everything — from industrial robots to delicate medical scanners — moves with precision and consistency. As technology continues to evolve, future innovations will likely make these systems even more compact, intelligent, and durable, further expanding their role in the automation-driven world ahead.
FAQs
1. What is the main purpose of a linear guide rail?
A linear guide rail ensures smooth and precise movement in a straight line while supporting loads efficiently. It reduces friction, improves accuracy, and enhances machine performance.
2. How do I choose the right linear guide rail for my application?
Consider load capacity, precision requirements, operating speed, and environmental conditions. For heavy loads, roller types are ideal; for high-speed precision, ball types work best.
3. What’s the difference between ball and roller linear guides?
Ball guides use spherical balls for smooth, fast motion with less load capacity, while roller guides use cylindrical rollers for higher rigidity and heavier loads.
4. How long does a linear guide rail last?
With proper installation, alignment, and lubrication, a quality linear guide rail can last several years — even under continuous operation.
5. How often should a linear guide rail be lubricated?
Lubrication frequency depends on usage and environment. In clean, light-duty conditions, maintenance may be required every few months, while heavy-duty applications might need weekly checks.
